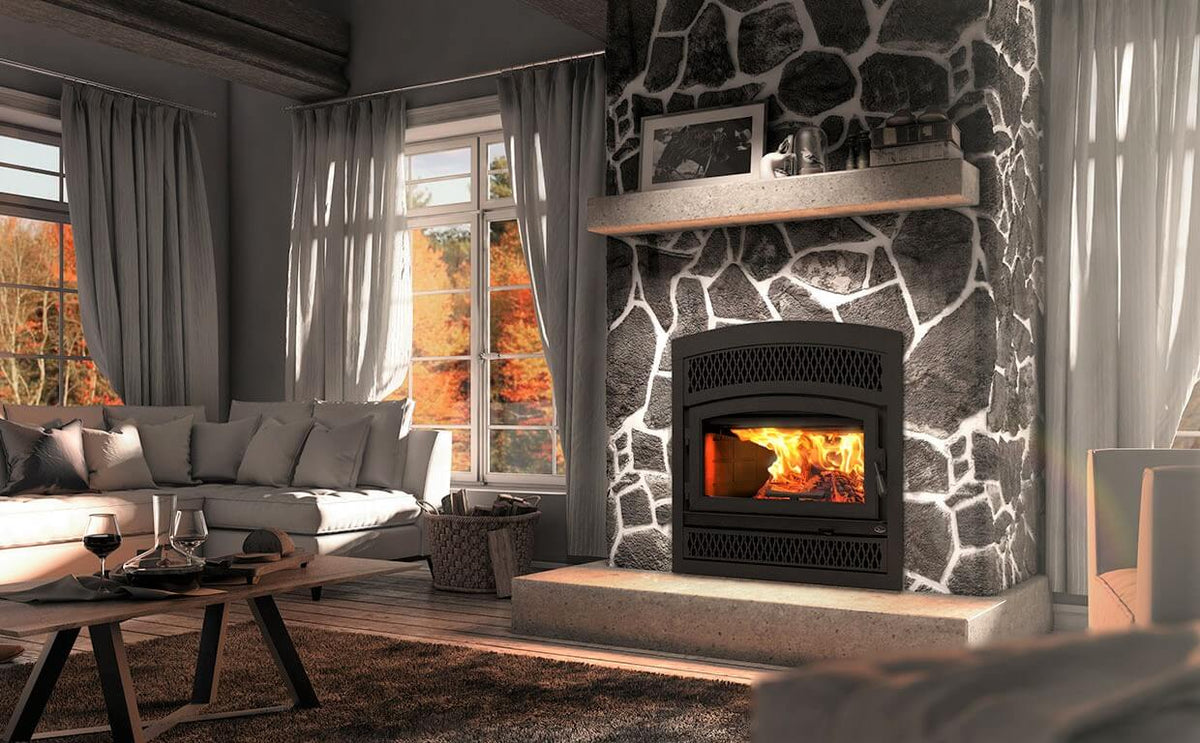

Valcourtinc FP10 LaFayette II - Wood Fireplace

Like the great French general, the Valcourt team has been able to use its tactical skills to upgrade this non-catalytic unit, so that it perfectly combines the new heating technology with all its elegance.

Customize your fireplace: five faceplate louvers as well as black or brushed nickel door overlays are available to enhance your decor. In addition to offering a distinctive look, the appliance follows the most restrictive EPA regulations, making it the fireplace of choice for those who want to use wood as a renewable and clean source of heat.

GENERAL FEATURES:

• Combustion technology : Non-catalytic
• High-efficiency certified appliance : Yes, EPA 2020 approved
• Maximum log length : 20"
• Log positioning : Over width
• Chimney diameter : 6"
• Flue outlet diameter : 493 lb (224 kg)
• Door type : Single, glass with steel frame
• Glass type : Ceramic glass
• Glass surface – dimensions (Width X Height) : 24 3/8" x 12 5/8"
• Glass air-wash system : Yes
• Premium quality blower included (CFM) : 176
• Overall dimension (Height) : 40 5/8"
• Overall dimension (Width) : 36 3/4"
• Overall dimension (Depth) : 28 3/8"
• Door opening – dimension (Height) : 10 1/2"
• Door opening - dimension (Width) : 25 3/8"
• Firebox – dimension (Height) : 12 1/8"
• Firebox – dimension (Width) : 20 3/8"
• Firebox – dimension (Depth) : 12 7/8"
• Moulded refractory bricks : Yes
• Stainless-steel secondary-air system improving gas combustion : Yes
• USA standard (emissions) : EPA
• Canadian Standard (emissions) : CSA B415.1-10
• USA standard (safety) : UL 127
• Canadian standard (safety) : ULC-S610
• Tested and listed as per applicable standards : By an accredited laboratory (CAN/USA)
• Warranty : Limited lifetime

APPLIANCE PERFORMANCE :

• Fuel type : Dry cordwood
• Recommended heating area-ft² : 750 - 2,200
• Overall firebox volume : 2.5
• EPA loading volume-ft : 1.69
• Maximum burn time : 8 h
• Maximum heat output (dry cordwood) : 80,000 BTU/h (23.4 kW)
• Overall heat output rate < : 14,200 BTU/h (4.16 kW) to 48,200 BTU/h (14.13 kW)
• Average overall efficiency (EPA cribs/Douglas fir) : N.A. (HHV) N.A. (LHV)
• Average overall efficiency (dry cordwood) : 68% (HHV) 73% (LHV)
• Optimum efficiency : 74 %
• Average particulate emissions rate : 1.14 g/h
• Average CO : 53 g/h
